Product Overview

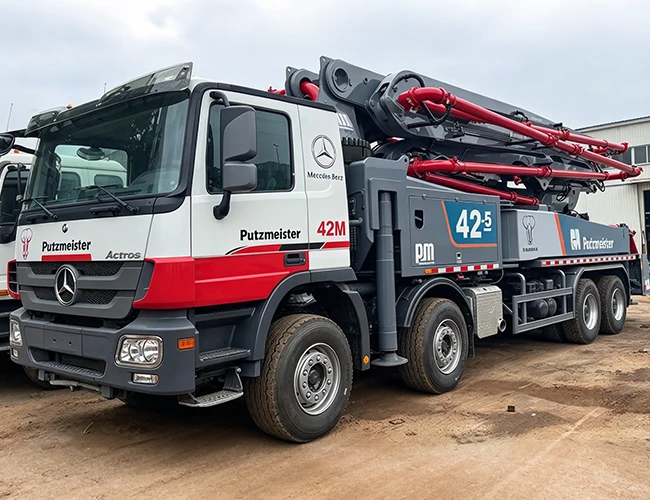

The Mercedes-Benz Actros 4141 8×4 Concrete Pump Truck is designed for concrete pumping operations on construction sites and infrastructure projects. Built on the Mercedes-Benz Actros 4141 8×4 chassis, the vehicle is equipped with an OM501LA V6 turbocharged diesel engine rated at 408 HP (300 kW), paired with a Mercedes-Benz G210-16 16-speed manual transmission.
The truck features an 8×4 drive configuration, a Mercedes-Benz wheel-reduction axle system with inter-axle and inter-wheel differential locks, and full-parabolic leaf spring suspension. Its 300L aluminum alloy fuel tank, 12R22.5 tires, and compressed air braking system support its configuration for demanding construction-related operations.
With left-hand drive and a listed maximum speed of 90 km/h, the Actros 4141 provides a heavy-duty chassis platform for concrete pumping equipment. The pump system specifications, boom reach, concrete output capacity, and other working parameters should be confirmed according to the final vehicle configuration.
Key Features of the Mercedes-Benz Actros 4141
1. Mercedes-Benz OM501LA V6 Engine
The truck is equipped with a Mercedes-Benz OM501LA V6 turbocharged diesel engine. The supplied specifications list a rated output of 408 HP (300 kW), a displacement of 11.946 L, and maximum torque of 2,000 N·m. The stated emission standard is Euro IV.
2. Heavy-Duty 8×4 Chassis
The 8×4 drive configuration provides a four-axle chassis platform for heavy-duty commercial vehicle applications. It is designed to accommodate the requirements of construction-related equipment, subject to the approved vehicle configuration and axle load limits.
3. 16-Speed Manual Transmission
The vehicle is fitted with a Mercedes-Benz G210-16 16-speed manual transmission. This transmission configuration is intended for heavy-duty vehicle operation and supports the truck’s powertrain requirements.
4. Wheel-Reduction Axle System
The specified axle system features Mercedes-Benz wheel-reduction axles with inter-axle and inter-wheel differential locks. These components are intended to support traction management under suitable operating conditions.
5. Full-Parabolic Leaf Spring Suspension
The truck uses a full-parabolic leaf spring suspension system. This configuration provides chassis support for commercial vehicle operation and helps accommodate the requirements of a heavy-duty construction vehicle.
6. 300L Aluminum Alloy Fuel Tank
The vehicle is equipped with a 300L aluminum alloy fuel tank. Actual driving range depends on engine operation, vehicle load, road conditions, and driving style.
7. Compressed Air Braking System
The supplied braking configuration includes a dual-circuit compressed air service brake, a spring-controlled air-release parking brake, and an engine exhaust brake as an auxiliary braking system.
8. Practical Cab Equipment
The listed cab equipment includes a hydraulic main driver’s seat, four-point mechanical cab suspension, electronically controlled automatic climate control, manual window operation, manual cab tilting, an oil-bath air filter, a metal bumper, and a two-stage cab access step. A 165Ah maintenance battery is also specified.
Technical Specifications
| MODEL | Mercedes-Benz Actros 4141 8×4 | Driving type | 8*4 |
| Driver position | Left Hand | Wheelbase(mm) | 2000N.m |
| Max. Speed(km/h) | 90 km/h | ||
| Engine | Brand | Mercedes- Benz V6 | |
| Model | OM501LA | ||
| Emission Standard | EURO 4 | ||
| Rated output power (PS) | 408 HP/300KW | ||
| Displacement (L) | 11.946L | ||
| Transmission | Brand | Mercedes-Benz | Model : G210-16 |
| Front axle | Brand | Mercedes-Benz | Model : |
| Rear axle | Brand | Mercedes-Benz | |
| Model | Wheel- reduction axle, withinter- axle differential lock andinter- wheel differential lock Speed ratio : 5.262 | ||
| Suspension | Full-parabolic leaf spring suspension (Steel-Steel, leaf-on-leaf) | ||
| Fuel tank | 300L Aluminum alloy | ||
| Wheels and tires | 12R22.5 | ||
| Brakes | Running brake: Dual circuit compressed air brake | ||
| Parking brake: Air discharging with spring control | |||
| Auxiliary brake: Engine exhaust brake | |||
| Cabin | Hydraulic main seat, four-point mechanical suspension cab, electronically controlled constant temperature air conditioner, manual operation, manual window crank, manual cab tilt, oil bath air filter, metal bumper, two-stage foot step, 165Ah maintenance-free battery, SINOTRUK identification | ||
Concrete Pump System Specifications
The supplied information does not include the concrete pump system’s detailed specifications. Please confirm the following items for the final product listing:
- Concrete pump output capacity (m³/h)
- Maximum vertical and horizontal boom reach
- Number of boom sections
- Maximum concrete pumping pressure
- Concrete delivery pipeline diameter
- Outrigger configuration and operating dimensions
- Total vehicle dimensions and gross vehicle weight
These specifications depend on the actual pump equipment installed on the chassis and should not be estimated without the manufacturer’s documentation.
Applications
The Mercedes-Benz Actros 4141 8×4 Concrete Pump Truck may be used for concrete pumping operations in suitable construction environments, depending on the installed pump equipment and final vehicle configuration.
- Building Construction: Concrete placement for suitable residential, commercial, and industrial building projects.
- Infrastructure Projects: Concrete pumping support for infrastructure construction where the installed equipment meets project requirements.
- Commercial Construction Sites: Concrete delivery and placement for projects requiring a truck-mounted pumping system.
- Large Construction Projects: Potential use on projects requiring truck-mounted concrete pumping equipment, subject to boom reach, pumping capacity, site access, and equipment specifications.
Before purchasing, buyers should confirm pump output, boom reach, vehicle dimensions, operating weight, and compliance with local road and construction regulations.
Why Choose Liangshan Wanye International Trade Co., Ltd.?
Founded in 2017 and based in Liangshan County, Shandong Province, China, Liangshan Wanye International Trade Co., Ltd. specializes in international trade involving trucks, truck spare parts, and related commercial vehicles.
Our product range includes tractor trucks, dump trucks, concrete mixer trucks, and trailers. We support international customers with vehicle sourcing, configuration coordination, export arrangements, and shipping requirements.
Our business philosophy is Integrity-oriented, Quality First, Win-win Cooperation. We aim to provide practical vehicle sourcing solutions and professional support for customers in international markets.
Frequently Asked Questions
1. What chassis does this concrete pump truck use?
The supplied chassis model is Mercedes-Benz Actros 4141 with an 8×4 configuration.
2. What engine is installed?
The truck is specified with a Mercedes-Benz OM501LA V6 turbocharged diesel engine rated at 408 HP (300 kW), with a listed displacement of 11.946 L.
3. What transmission does it use?
The supplied specification lists a Mercedes-Benz G210-16 16-speed manual transmission.
4. What is the emission standard?
The provided specifications list Euro IV. Buyers should verify the vehicle’s emission documentation and destination-market requirements before ordering.
5. What is the concrete pump’s maximum reach?
The pump’s maximum vertical and horizontal reach was not included in the supplied specifications. Please confirm the installed pump model and manufacturer data.
6. Can I request an export quotation?
Yes. Contact Liangshan Wanye International Trade Co., Ltd. with your destination country, project requirements, desired pump configuration, quantity, and shipping details to discuss availability and export pricing.
Request a Quote
Looking for a Mercedes-Benz Actros 4141 8×4 Concrete Pump Truck for your construction project?
Contact Liangshan Wanye International Trade Co., Ltd. to confirm chassis and pump specifications, vehicle availability, export pricing, and shipping arrangements.
Integrity-oriented, Quality First, Win-win Cooperation.
